Камеры видеонаблюдения IP видеокамеры VC58SM3i

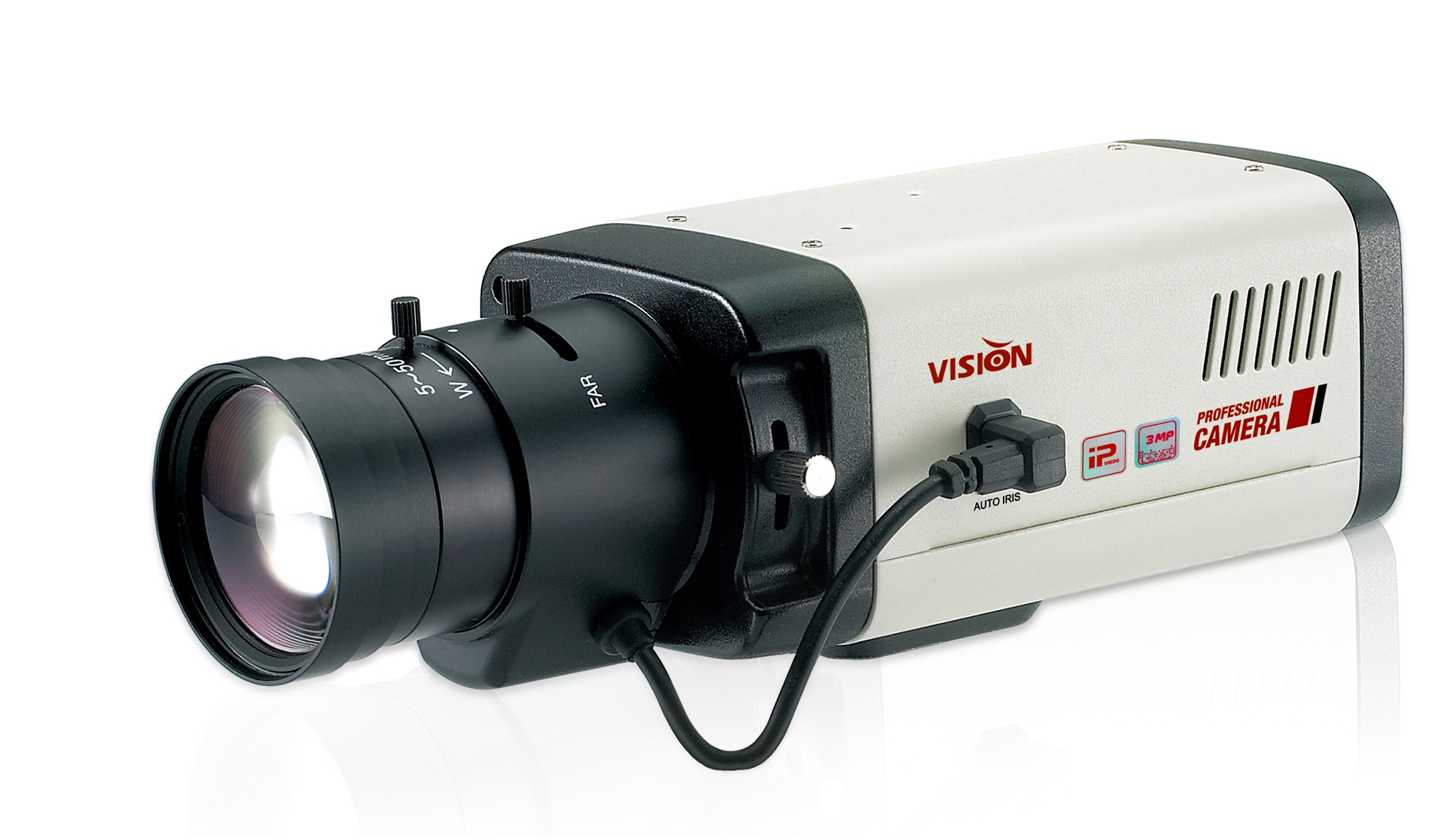

IP видеокамера VC58SM3i

IP видеокамера VC58SM3i
Увеличить

Производитель VISION HI TECH



CMOS 3.0 Megapixel
1/2.8" SONY progressive scan

Размеры
Характеристики
Схема подключения

Гарантия 1 год



Full HD (1080p) трехмегапиксельная IP камера видеонаблюдения VC58SM3i

H.264 / M-JPEG Dual Mode, 3.0 Megapixel Sony CMOS Sensor, Day/Night, 2 Way Audio, Standard PoE, IPv4 & IPv6 Compatible.

Программное обеспечение NVR - сетевой видео регистратор (NETWORK VIDEO RECORDER) в комплекте.

Особенности:

  • 3.0 Megapixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality
  • Dual Streaming of H.264 and M-JPEG
  • Up to 30 frames per second at all image resolutions
  • Supports image resolutions up to Full HD (1920x1080)
  • IPv4 & IPv6 compatible
  • Integrated motion detection with pre- and post-alarm image/video buffering
  • Event-triggered FTP and email upload of still images and videos
  • Full Duplex Two-Way Audio Support
  • Digital PTZ
  • UPnP supported
  • SD/SDHC Local storage, event triggered, scheduled and continuous recording supported
  • 1 Port analog video loop-out port
  • External microphone input & speaker output connector
  • Terminal block for external sensors or external alarm devices
  • Supports CBR (constant bit rate) and VBR (variable bit rate) modes
  • Controllable frame rate
  • Video access through any standard Web browser
  • Privacy Masking up to 4 areas
  • Supports IEEE 802.3af Power over Ethernet injectors, mid- and end-spans
  • Integrated HTTP Web server supporting 50 simultaneous user connections
  • HTTPS supported (Hyper Text Transfer Protocol Secured)
  • Integrated E-Mail, FTP, DDNS and DHCP client
  • Extensive CGI API for software integration and remote programming operations
  • Includes Windows based IP Installer and license-free 16 channel NVR(Network Video Recorder) software

Комплектация:

1. Камера
2. Переходник C/C-mount
3. Разъем а/диафрагмы
4. описание и П/О
   Матрица CMOS 3.0 Megapixel 1/2.8" SONY progressive scan Матрица CMOS 3.0 Megapixel 1/2.8" SONY progressive scan
   Цифровой процессор 32-bit ARM9 RISC CPU 533MHz, 32KB I/D-Cache, MMU

Характеристики

Classification Specification
General
CPU
32-bit ARM9 RISC CPU up to 533MHz, 32KB I/D-Cache, MMU
Videio Buffer
16Mbyte Video Frame Buffer
Flash
16 Mbyte Flash Memory
SDRAM
256Mbyte
Image Pickup
Image sensor
3.0 Megapixel 1/2.8" SONY progressive scan CMOS image sensor
Total Pixels
2144(H) x 1588(V) 3.4 Megapixel
Effective Pixels
2096(H) x 1561(V) 3.27 Megapixel
S/N Ratio
More than 52dB
Min. Illumination
1 Lux with DSSX2 (F1.2, 30IRE, AGC On)
Day & Night
D/N Output Port, ICR
Lens (Not included)
C/CS Mount, DC Iris
Video
Video compression
H.264 baseline profile, Motion JPEG
Resolutions
Up to 1920 x 1080
Frame rate
H.264 Up to 15fps with 1920x1080
MJPEG Up to 15fps with VGA (Simultaneous dual stream)
MJPEG single stream up to 30 fps @ 720p
Video streaming
Support multi stream with H.264, MJPEG
Adjustable frame rate
VBR/CBR in H.264
Pan/Tilt/Zoom
Digital PTZ
Image setting
Day & Night
ATR-EX(WDR)
Auto White Balance
Auto Exposure
Privacy Mask
Effect - Color, Sharpness, Mirror/V-Flip, etc.
Output
BNC x1, 1.0Vp-p, 75 ohm Composite Video, NTSC/PAL
Audio
Audio streaming
Two-way, full duplex
Audio compression
G.711
Sample Rate
8KHZ
Data Rate
64Kbps
Audio input
Microphone input /1 x Line-In (Single Mono)
Audio output
Line output/ 1 x Line-Out (Single Mono)
Network
Security
Password protection
User access log
HTTPS encryption
Supported protocol
HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP
RTSP, RTP, TCP, UDP, ICMP, DHCP
Wireless LAN
IEEE 802.11 b/g/n (for VC58SM3i-U)
System
integration
Intelligent video
Motion detection up to 1920x1080 with 32x24 blocks
Alarm trigger
Motion detection
External input/Normal Open/Close Type
Alarm events
File upload via ftp, e-mail
Notification via email, FTP and TCP
External output activation/Normal Open/Close Type
Video buffer
16MB pre-alarm and post-alarm
Recording
Save to SD/SDHC card with event mode and continuous mode
Firmware upgrade
Remote upgrade via network
API
CGI Interface document
ActiveX Interface(ocx(dll) + document)
Physical
RESET Button
1 x Factory Reset Button
Power Source
DC 12V/1.5A, PoE(Power over Ethernet): 802.3af
Power Consumption
Max. 5.5W
Net Weight
580g (Camera Only, without Lens)
LED`s
Power, Network Connection
Dimension
66mm(W) X 57mm(H) X 126mm(D)
Environment
Operating Temperature
-25 degree~50 degree Celsius (-13F~122F)
Storage Temperature
-25 degree~60 degree Celsius (-13F~140F)
Software
Included Software
NVR Lite (16 Channel), IP Installer (Windows Only)

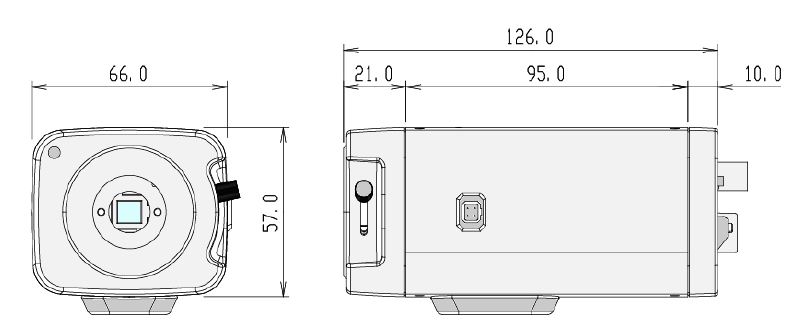

Размеры:

Размеры видеокамеры VC58FHD-12

Схема подключения VC58SM3i:

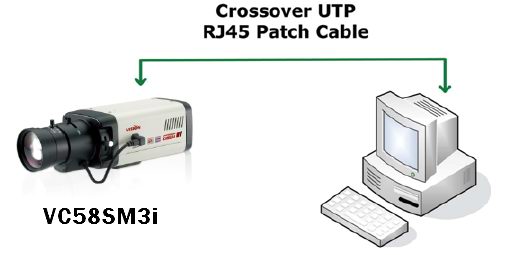

Прямое подключение к компьютеру:

Прямое подключение к компьютеру

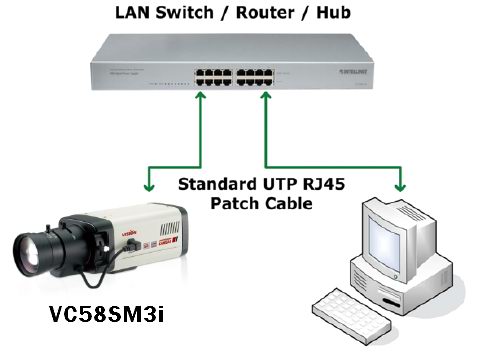

Подключение к локальной сети:

Подключение к локальной сети

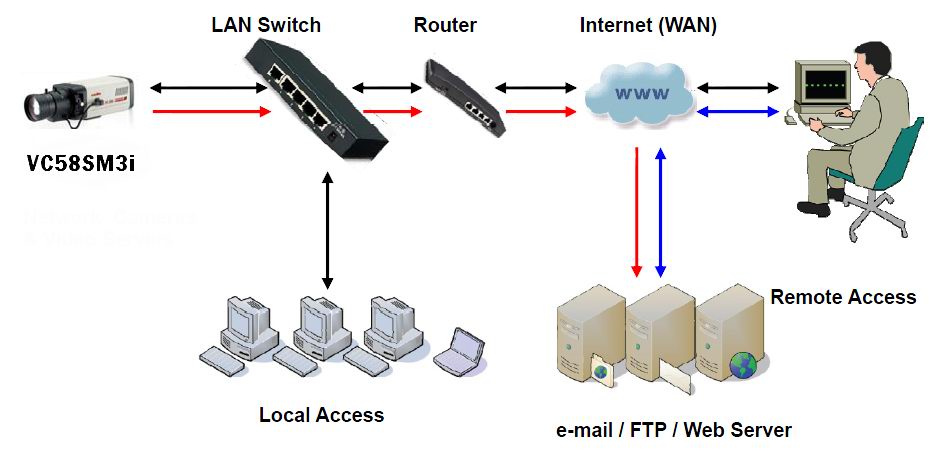

Подключение камеры видеонаблюдения к сети интернет:

Подключение камеры видеонаблюдения к сети интернет

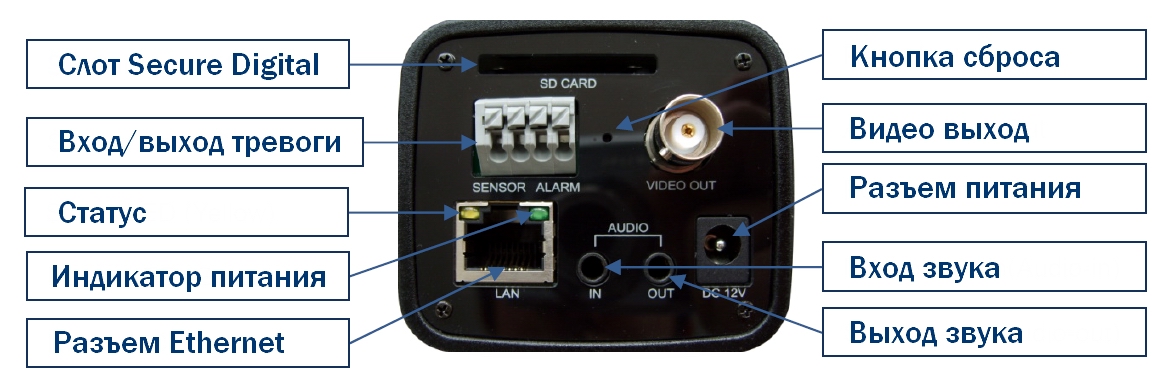

Разъемы видеокамеры:

Схема подключения видеокамеры vc58sm3i

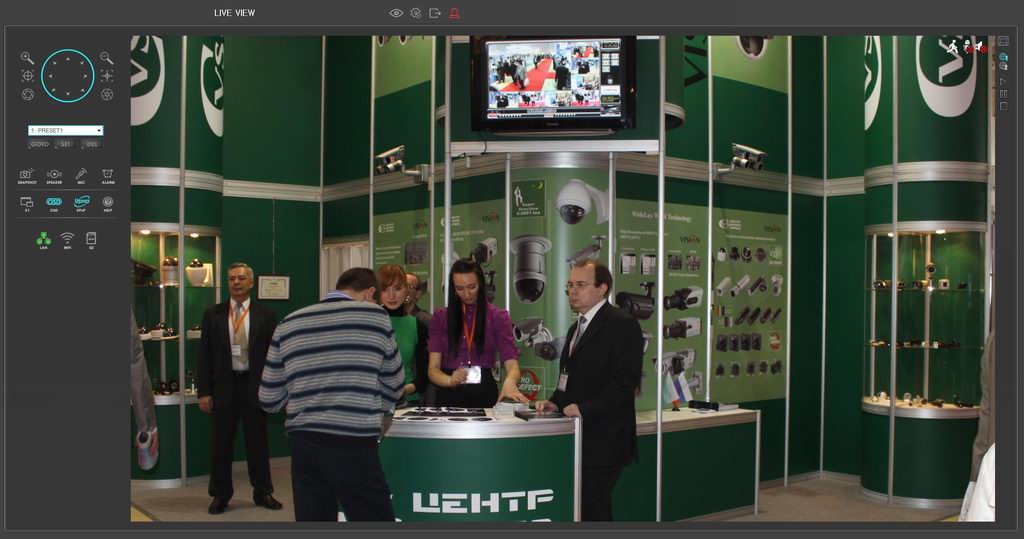

Встроенный веб сервер VC58SM3i:

Встроенный веб сервер VC58SM3i

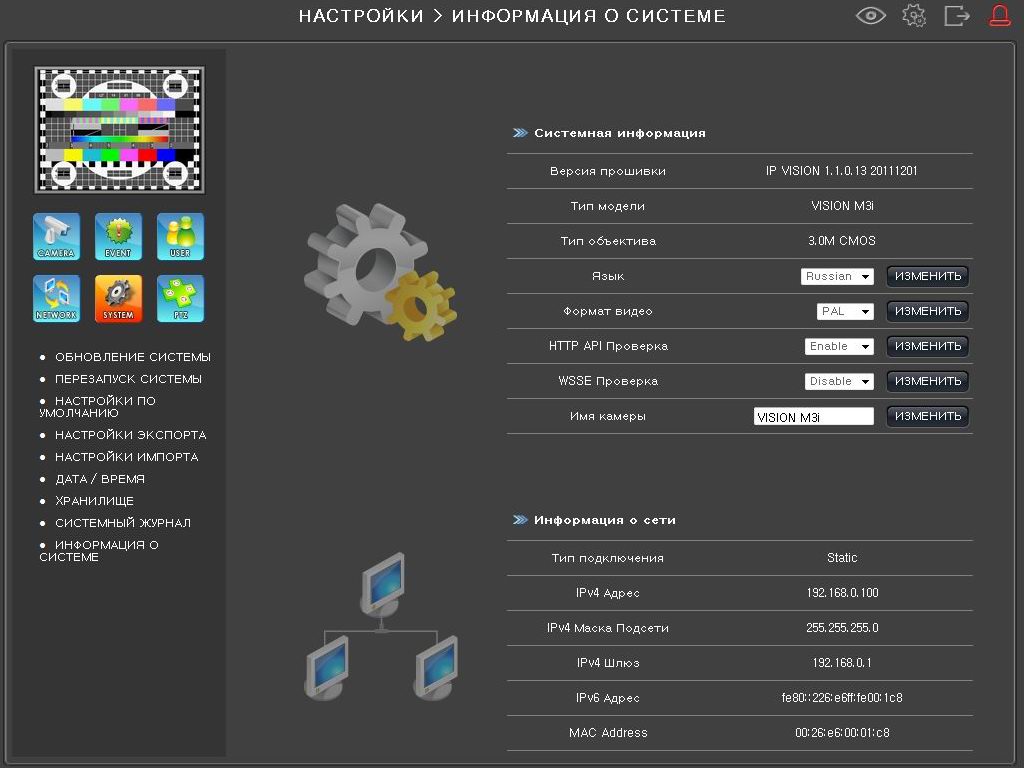

Настройки веб сервера VC58SM3i:

Настройки веб сервера VC58SM3i

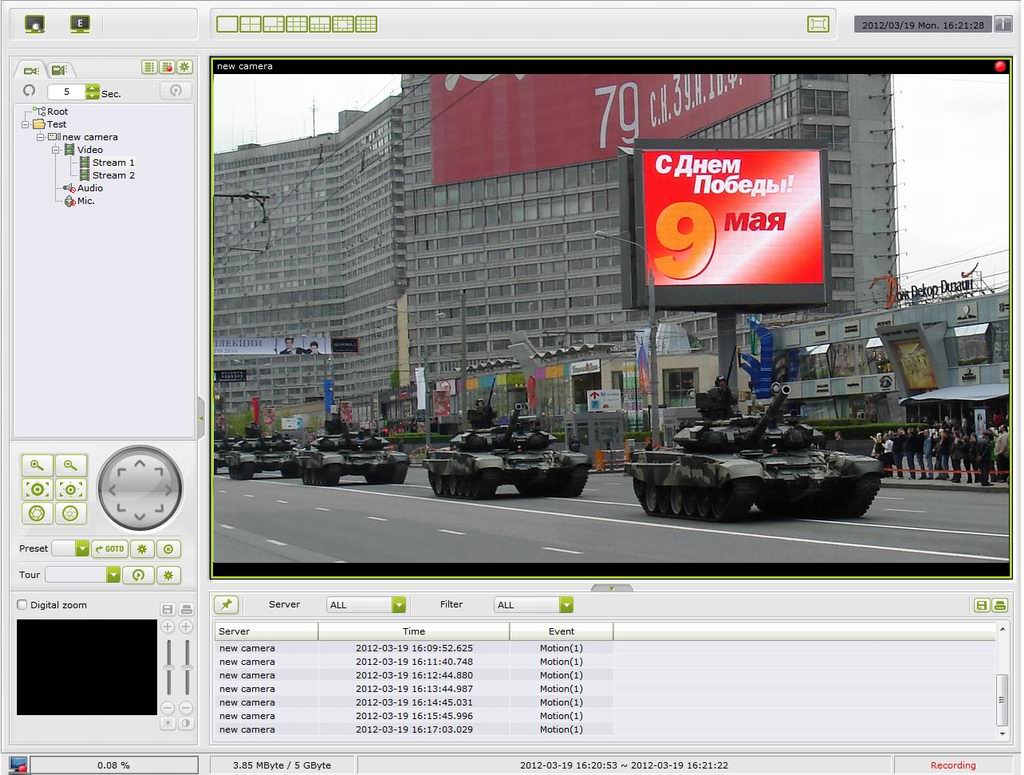

Программное обеспечение NVR для IP видеокамеры VC58SM3i:

Программное обеспечение NVR для IP видеокамеры VC58SM3i

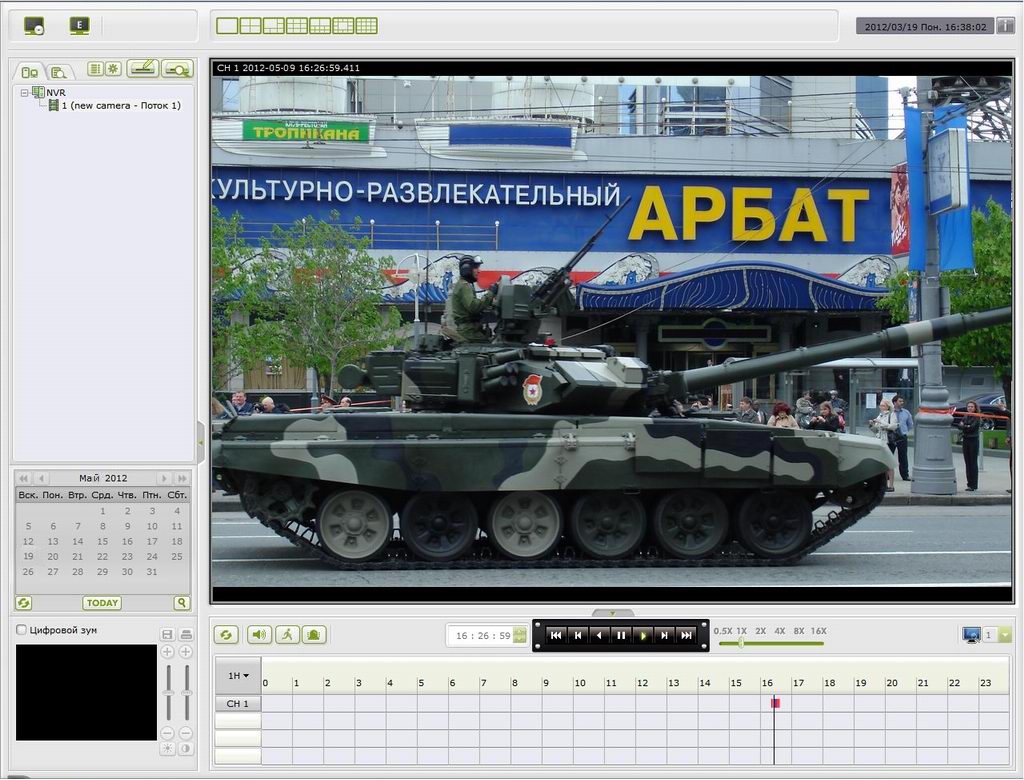

Воспроизведение записи с IP видеокамеры VC58SM3i:

Воспроизведение записи с IP видеокамеры VC58SM3i

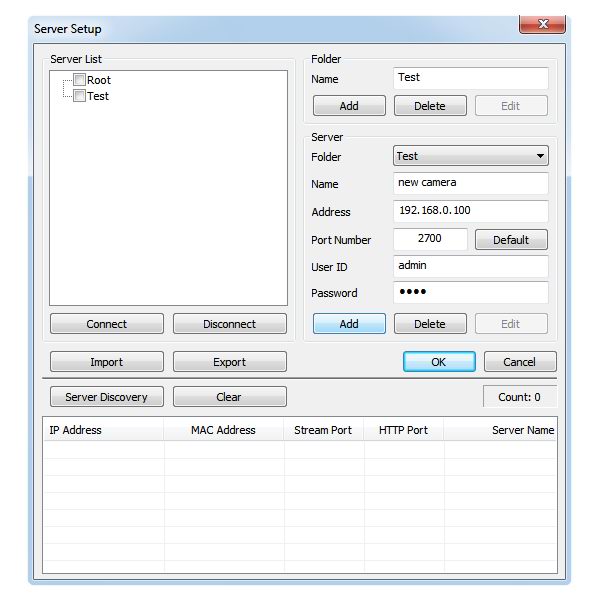

Настройка программы NVR (NETWORK VIDEO RECORDER):

Настройка программы NVR (NETWORK VIDEO RECORDER)

Заводские установки: User ID admin Пароль 1234

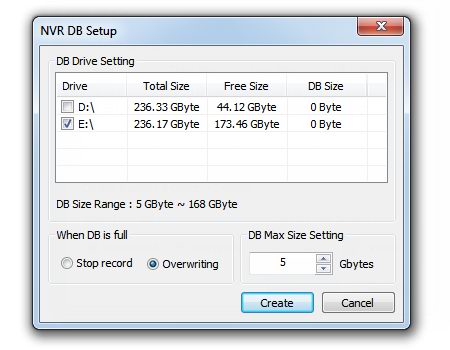

Настройка HDD компъютера пользователя для записи видео информации:

Настройка HDD компъютера пользователя для записи видео информации

Network Camera & Video Server USER MANUAL (ENG)

NETWORK VIDEO RECORDER USER MANUAL (ENG)

VC58 HARDWARE INSTALLATION GUIDE (ENG)
